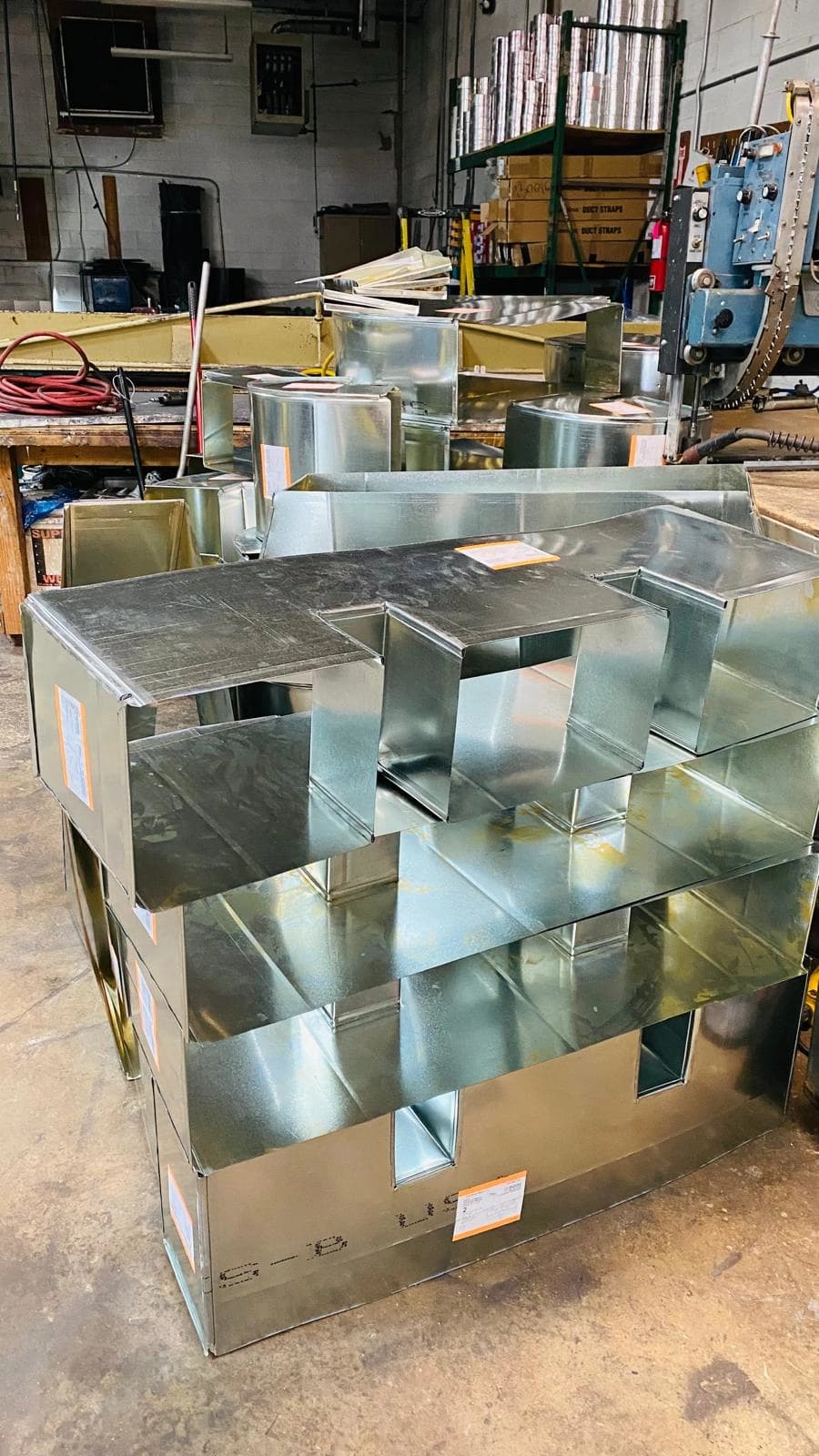

Rectangular Duct Fabrication
The Industry Workhorse for HVAC Distribution
Diaz Sheet Metal provides high-precision rectangular ductwork, custom-fabricated to meet the most demanding commercial and industrial specifications. Our systems are manufactured strictly to SMACNA standards, ensuring structural rigidity, optimal space utilization, and air-tight performance for main trunk lines.
Our Services
Automated Coil Line
Our high-volume automated line ensures consistent precision, speed, and cost-efficiency for large-scale projects.
Lockseam Technology
Utilizing Pittsburgh lockseams and Snaplock joints for maximum structural integrity and minimal leakage.
In-House Lining
Automated application of acoustic and thermal insulation liners (1/2" to 2") to meet project-specific requirements.
SMACNA Certified
Every section is fabricated according to SMACNA gauge and reinforcement tables for specific pressure classes.
Why Choose Diaz Sheet Metal?
Superior space utilization in restricted ceiling plenums
Custom-engineered transitions, offsets, and square-to-rounds
Connection options: S&D (Slip & Drive) and TDC/TDF Flange systems
High-gauge capability (26 GA to 18 GA) for industrial durability
Precision-tagged sections for rapid and organized field installation
Compatible with all major commercial VAV and AHU equipment
Our Process
1
Blueprint Analysis
Detailed review of mechanical plans and client-provided shop drawings.
2
CNC Programming
Templates are precision-nested and cut to ensure minimal waste and perfect fit.
3
Automated Fabrication
Coil line processing for straight ducts and specialized work for fittings.
4
System Logistics
Carefully stacked, strapped, and delivered to your site for immediate staging.
Frequently Asked Questions
What is the difference between TDC and S&D connections?▼
S&D (Slip and Drive) is typically used for smaller duct sizes or lower pressure classes. TDC/TDF (Transverse Duct Connection) uses a 4-bolt flange system with a gasket, providing a much stronger and more airtight connection for larger trunk lines and high-pressure systems.
Do you fabricate double-wall rectangular duct?▼
Yes. We can fabricate double-wall systems with a perforated or solid inner liner and a layer of insulation in between for superior acoustic or thermal performance in sensitive environments.
What gauges do you recommend for commercial projects?▼
Gauge selection is determined by the duct width and the design static pressure. We follow SMACNA tables strictly, typically ranging from 26 GA for small branches to 18 GA for large main systems.
How do you handle custom field conditions?▼
We specialize in 'problem-solving' fabrication. If you have an unexpected field obstruction, our shop can rapidly produce custom offsets or transitions based on your verified field dimensions.
Ready to Get Started?
Contact us today for a free estimate on your rectangular duct fabrication project.
